Temperature Sensors for a range of applications. With a Thermocouples, RTD Sensors, Thermostats and PT100’s we have a Temperature Sensor for your needs.
Our sensors are used for both commercial and domestic appliances. Being the UK’s largest manufacturer of heating elements we can couple these with our range of products to give you the bespoke solution you need. Just contact us to discuss your requirements.
- Thermocouples
- PT100
- Thermostats
- RTD Sensors
Thermocouples are temperature sensors that consist of two leads which are each made of a different type of metal. The wires are joined together at one end which is called a junction. The junction is the point at which the temperature is measured. A change in temperature creates a voltage which is then relayed back to read the exact result. Type J, K, T, & E are “Base Metal” thermocouples, the most common types of thermocouples. Type R, S, and B thermocouples are “Noble Metal” thermocouples, which are used in high temperature applications.

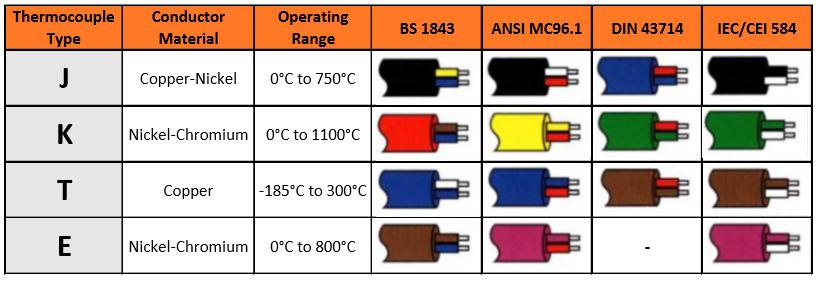

Use this chart to identify your thermocouple.
PT100 is a Platinum Resistance Temperature Detector (RTD). ‘PT’ referring to the element symbol and ‘100’ referring to a resistance of 100 ohms at 0°C which changes with temperature. PT100 temperature sensors are reliable and can offer a higher degree of accuracy. The temperature range is suitable for -200°C to 600°C but are more commonly used between -50°C to +250°C.
Thermostats – Capillary or Rod Type Thermostats are available in various sizes and temperature ranges which can be easily adjusted as required. Rod type thermostats are commonly used in immersion heaters.
